D954SW 32-Bit High Torque Steel Gear Servo

Product Description

The power of Hitec’s D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW. As with our entire “D” line, these technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from our popular HS-7954SH servo. Advancing servo technology and providing superior engineering has always been Hitec’s mission and that continues today as we expand our outstanding D-Series product line.

Features

Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline
Coreless Metal Brush Motors
Nylon Reinforced Plastic Upper and Lower Case
Diamond Cut Aluminum Heat Sink Center Case
Dust Resistant and Splash Proof Case

Programmable Functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Accessories

3 Steel Alloy Gears Set | Link |
Metal / Karbonite 1st Gear Set | Link |
Plastic / Aluminum Case Set | Link |
Applicable Horns & Screws

D954W Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 7.4V
Speed (Second @ 60°)	0.19 ~ 0.12
Maximum Torque Range oz. / in.	251 ~ 405
Maximum Torque Range kg. / cm.	18.0 ~ 29.0
Current Draw at Idle	30 mA
No Load Operating Current Draw	500 mA
Stall Current Draw	5,200 mA
Dead Band Width	1 µs

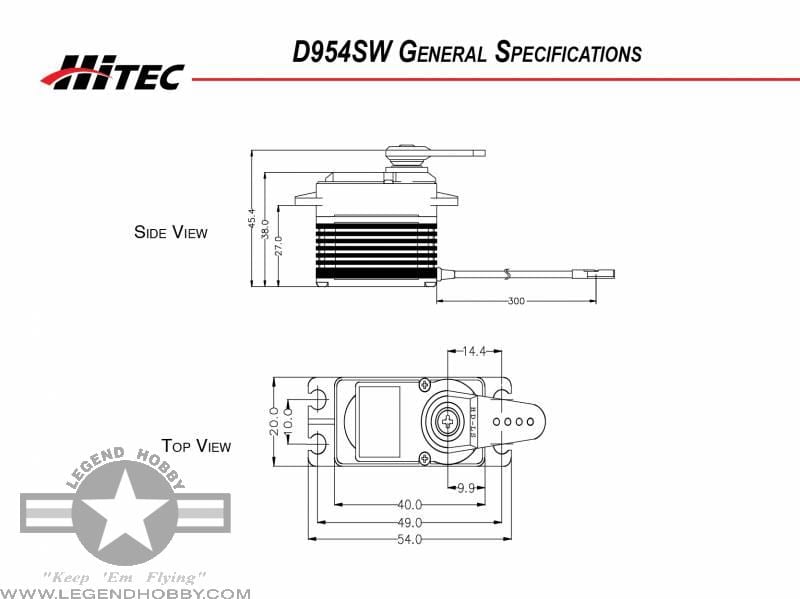

Physical Specifications
Dimensions (Inches)	1.57 x 0.78 x 1.46
Dimensions (Metric)	40.0 x 20.0 x 37.0
Weight (Ounces)	2.40
Weight (Gram)	68.0
Circuit Type	32bit Programable Digital
Motor Type	Coreless Metal Brush
Gear Material	MK 1st Gear & 3 Steel Alloy Gears
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	H25T
Case Material	Plastic / Aluminum
Dust / Water Resistance	Splash Proof
Connector Gauge (AWG) / Strand Count	20 / 80
Radio Control Applications
Parkflyer	N / A
Sport Plane	30 - 40%
Sailplane	2 meters and up
3D Performance	30 - 40%
Scale	30 - 40%
Electric Helicopter	N / A
Gas Helicopter	N / A
On Road	1/8th
Monster Truck	1/8th
Buggies	1/8th
Truggies	1/8th
Short Course / Truck	1/8th
Crawlers	1/8th
Sail Boat	= >1M & Scale
Power Boat	N/A
