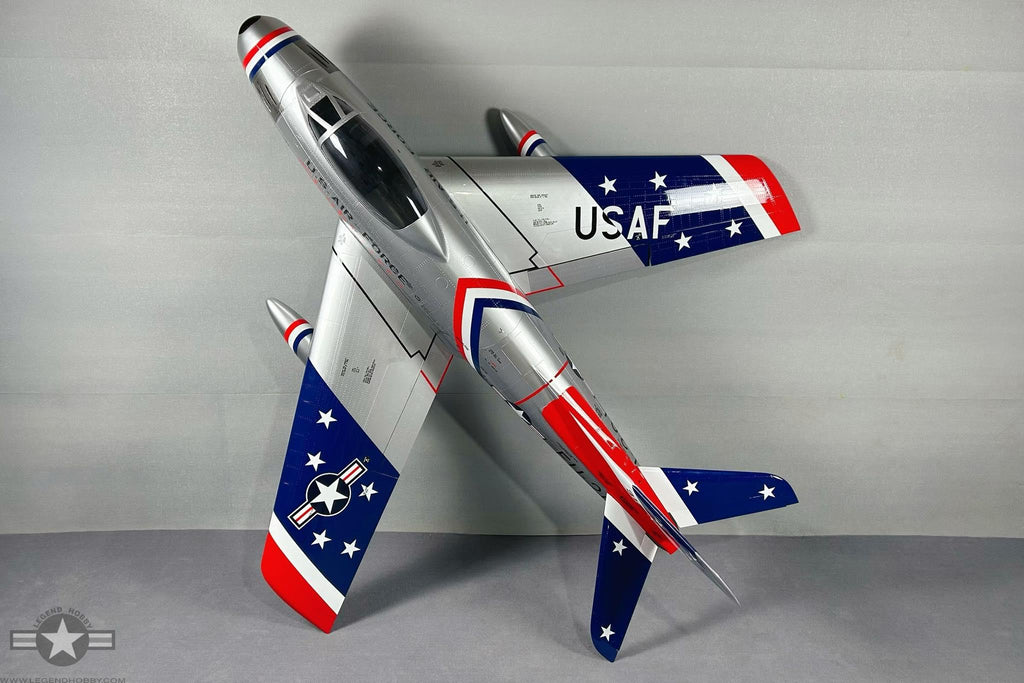

North American 1.8M F-86 Sabre by KYHK RC

CUSTOM ORDERED IN COLOR SCHEME OF CHOICE ,

ALLOW APPROX 6-14 WEEKS FOR DELIVERY. SOME ORDERS SHIP SOON AS 3 WEEKS!  ONCE ORDER IS RECEIVED WE WILL CONTACT YOU TO WORK OUT SPECIFICS ON YOUR CUSTOM COLOR SCHEME!

ORDERS COMMENCING THIS WEEK OF NOV 12th 2023!

$100 OFF INITIAL ORDERS FOR LIMITED TIME!

The design of this aircraft started in 2019 and has been continuously tested, and was officially launched in August 2023. The aircraft has a length of 1.8M and a wingspan of 1.8M. It is made of all composite materials and is lightweight yet strong.  Just like the real aircraft it features many panel lines, hatch details and rivets.  Time was spent developing the optional realistic cockpit and we are sure you will be delighted with the extra scale fidelity it brings to the model!  The 1.8-meter size presents well and is large enough to see easily in flight yet not too large to be an inconvenience during transportation and storage. We feel the 1.8 size airframes are a perfect mix of size/scale/flight envelope and affordability!   The engine is designed in front of the aircraft’s center of gravity, lengthening the jet duct and reducing the aircraft’s counterweight, resulting in a lower take-off weight.  The wings and horizontal tail are both detachable and adopt CNC precision-machined aluminum alloy pipe clamps, which can be easily disassembled and installed for easy transportation.  The model is similar to the full-scale F-86 in that it too has truly excellent flight performance.

• KYHK 1.8m F-86

  Standard configuration fuel tank (2 liters)

  1. Developed and designed based on the “F-86” prototype, the composite fuel tank has a reasonable layout and a solid structure.  Installation is easy and simple.
  2. CNC precision machined oil nozzle with corresponding thread design.
  3. Original copper metal oil hammer.
  4. Transparent oil tank makes it easy to observe the oil level.

  Standard configuration the nozzle is made of high-temperature resistant materials, has both high strength and light weight, good back flow, reasonable design, and is simple to install and operate.

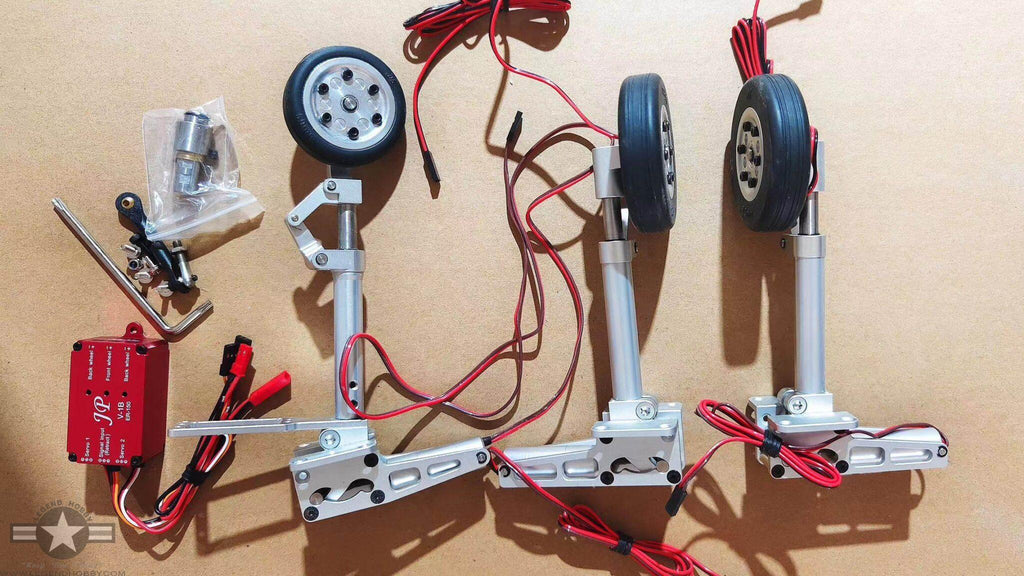

  Standard configuration  Landing gear, jointly produced by JP HOBBY, CNC precision machined alloy bracket, installed, high structural strength and light weight.   Electromagnetic brakes, rubber tires.   After continuous testing and optimization, the bracket supports the carbon plate with excellent braking effect.

  Optional; Scale Cockpit enhances aircraft appearance, and improved detail.  High degree of scale appearance.

  Product specifications:

  Wingspan: 1.8m

  Length: 1.8m

  Weight: The weight of the pure empty machine is about 5 kg, and the weight of the complete equipment including the engine is about 9.4 kg.

  Fuel tank capacity: 2L

  Turbine engine: 8-12kg

  Servo: total x9 (standard size x4 + medium size x5)

  X4 standard size high magnesium (minimum 20kg)

  x1/aileron/side

  x1/wing/side

  X5 medium size (size: 35x15x30mm, minimum 4kg)

  x1/lift/side

  x1 rudder

  x1 rudder

  x1 hatch cover

  All the usual accessories are also required, such as transmitters, receivers, servos, batteries, power boxes, turbines, and other possible devices and assembly adhesives etc.

  VIDEOS COMING SOON
