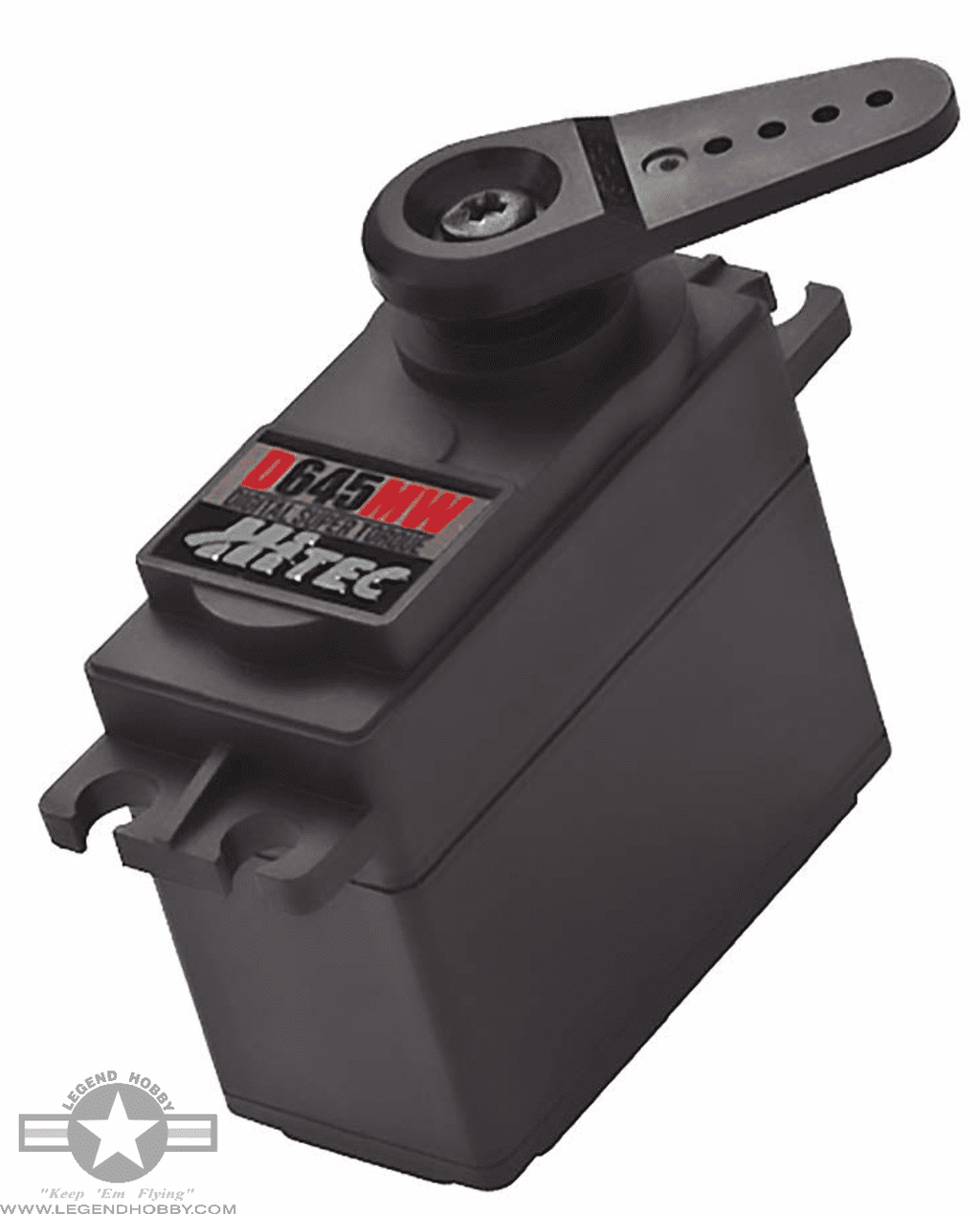

Hitec D645MW Wide Voltage Super Torque Digital Metal Gear Servo
Product Description
The metal D-645MW is part of the D-Series servo line. All Hitec D-Series servos have been designed using the brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market. This is the upgraded version of the HS-5685MH
This is the Hitec D-Series Dynamo D-645MW High Torque Metal Gear Servo.
Ideal for all RC catagories
2S LiPo and 6-cell NiMH compatible
Narrow deadband width and high standing torque
Gold plated connector
32-bit MCU and 12-bit ADC for unprecedented programmability and
flexibility
*Programmable digital amplifier with MOSFET drive
D-645MW High Torque Metal Gear Servo
0.98 (25mm) Single Arm
1.7 (44mm) Double Arm
1.5 (38mm) 4-Point Horn
1.4 (36mm) Round Horn
Four each Grommets, Eylets and Mounting Screws
Metal Adapter Ring, extra Horn Screw
4.8V 6.0V 7.4V
Speed: 0.28 0.20 0.17 sec60
Torque: 115.3 157.8 180.1 oz-in
8.3 11.3 12.9 kg-cm
Dimensions: 1.59 x 0.77 x 1.48 (40.6 x 19.8 x 37.8mm)
Weight: 2.11 oz (60g)
Number of Teeth on Spline: 25
Diameter of Horn Screw: 3mm
*Programmable features require Hitec Servo Programmer sold separately
HFP-30, DPC-11, HRCP4429
