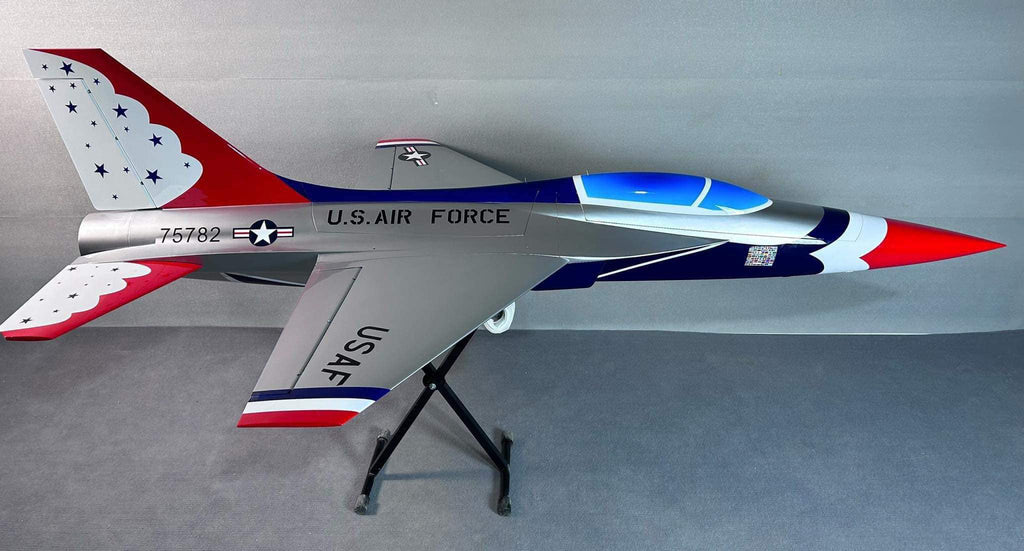

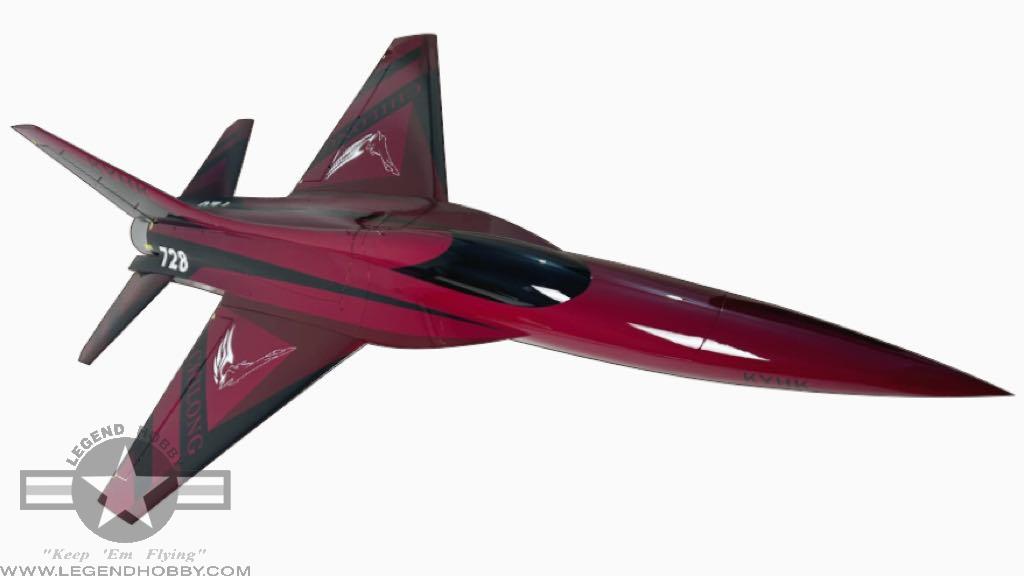

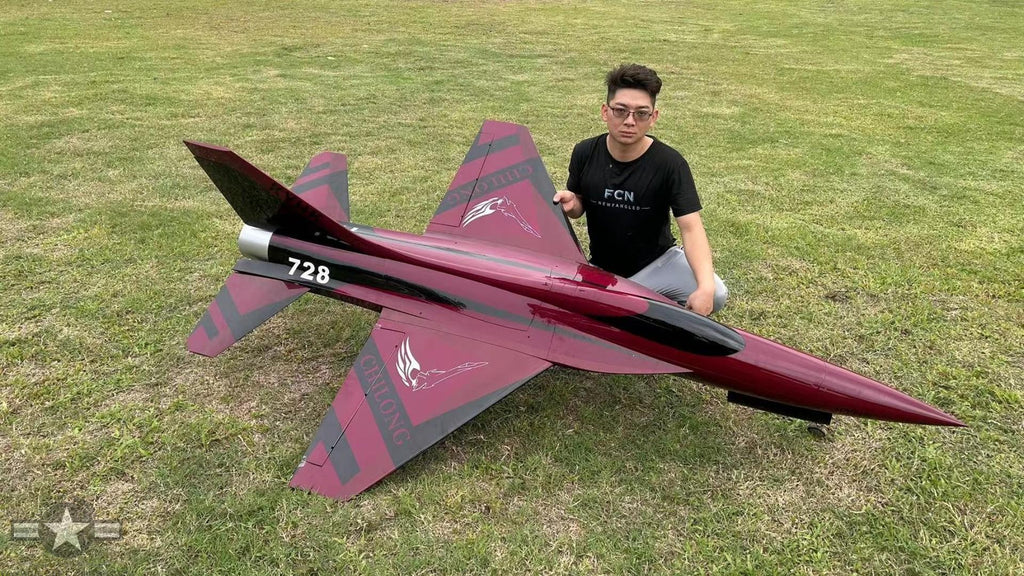

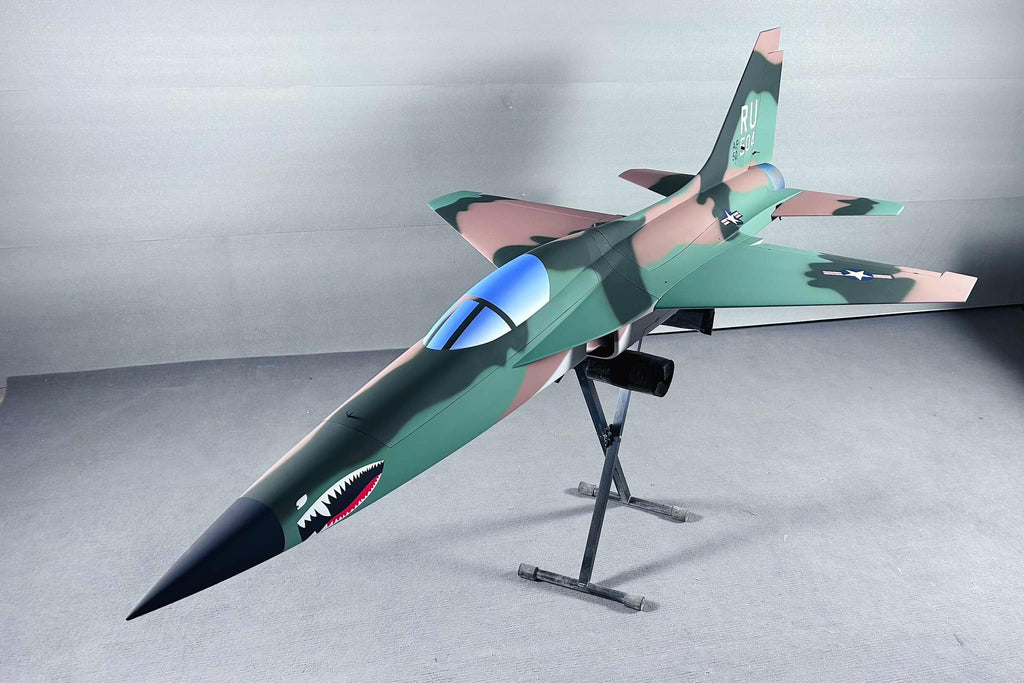

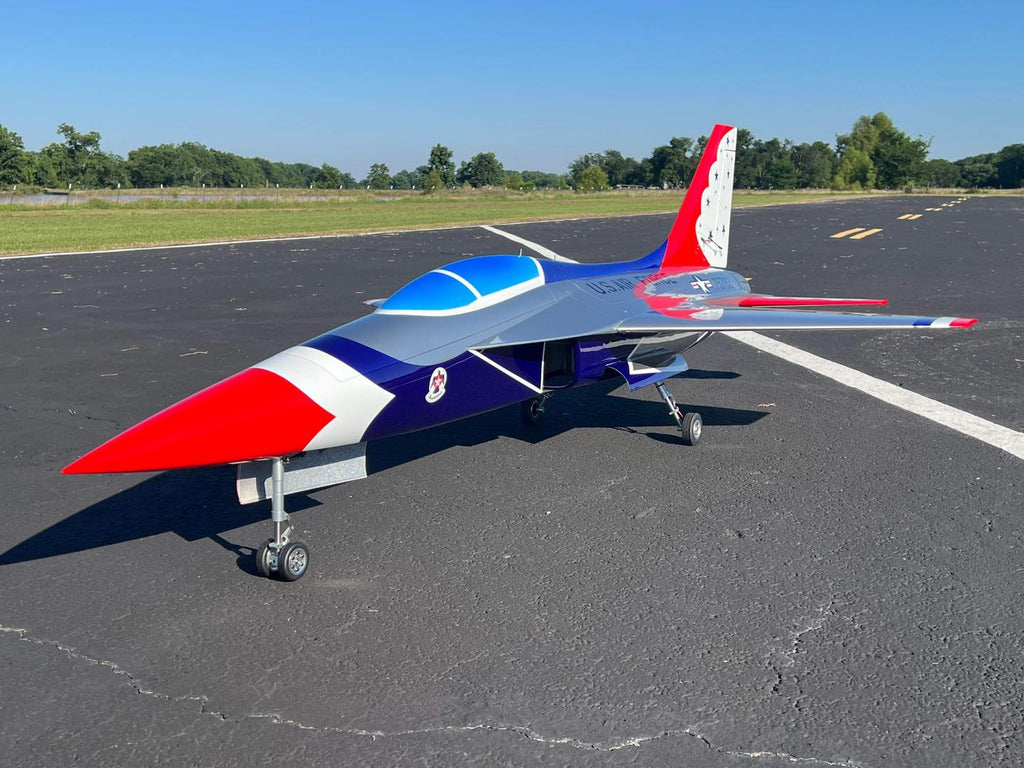

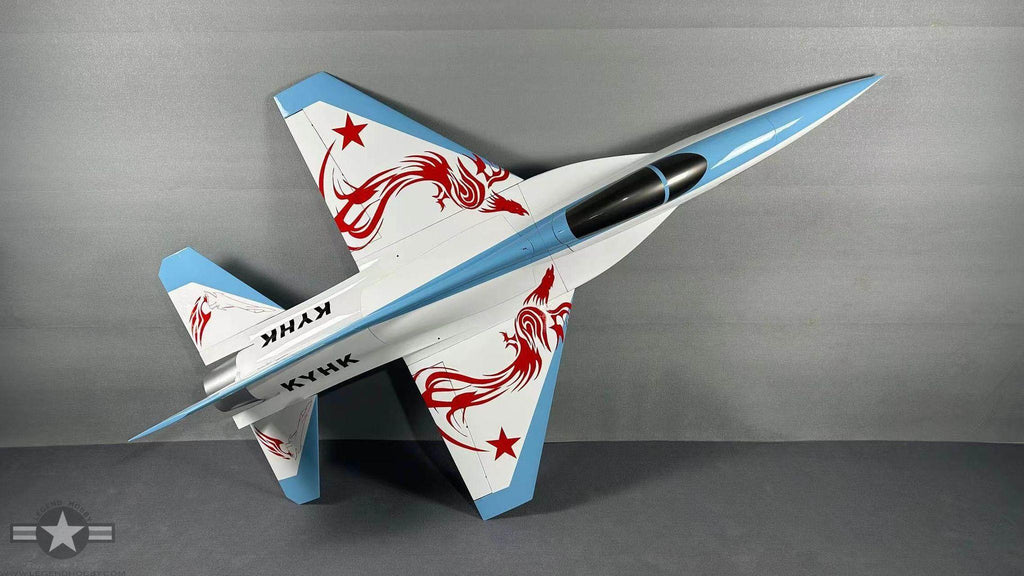

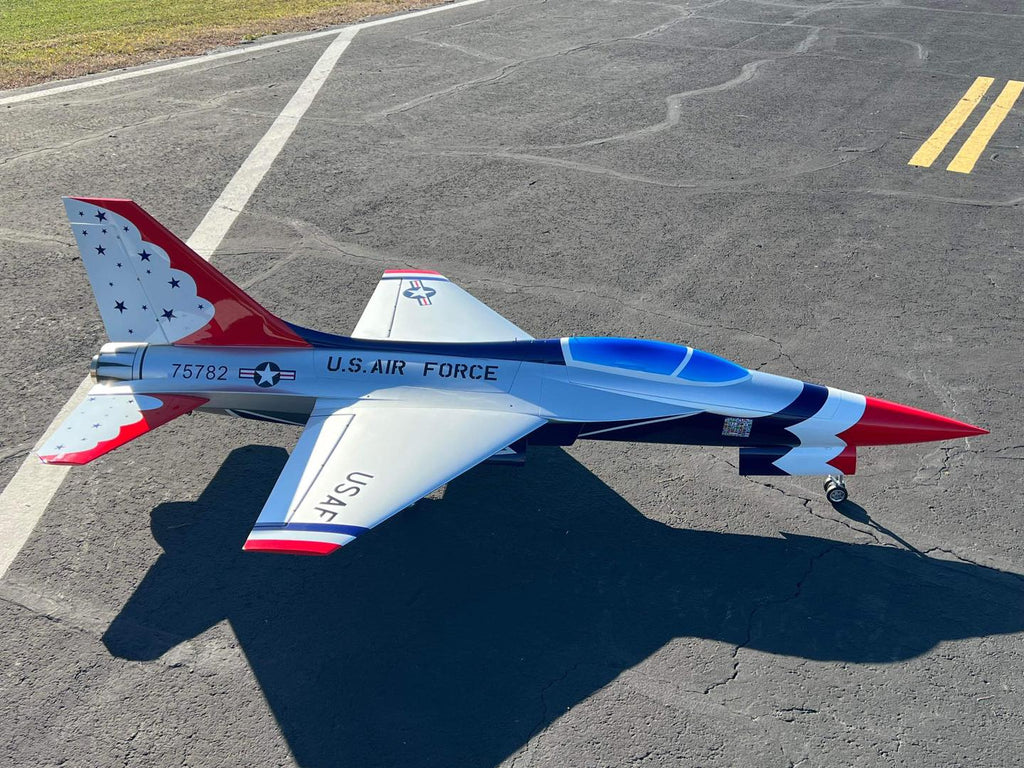

CHILONG "RED DRAGON" 2.4M JET by KYHK RC

2.4M CHILONG "RED DRAGON" JET

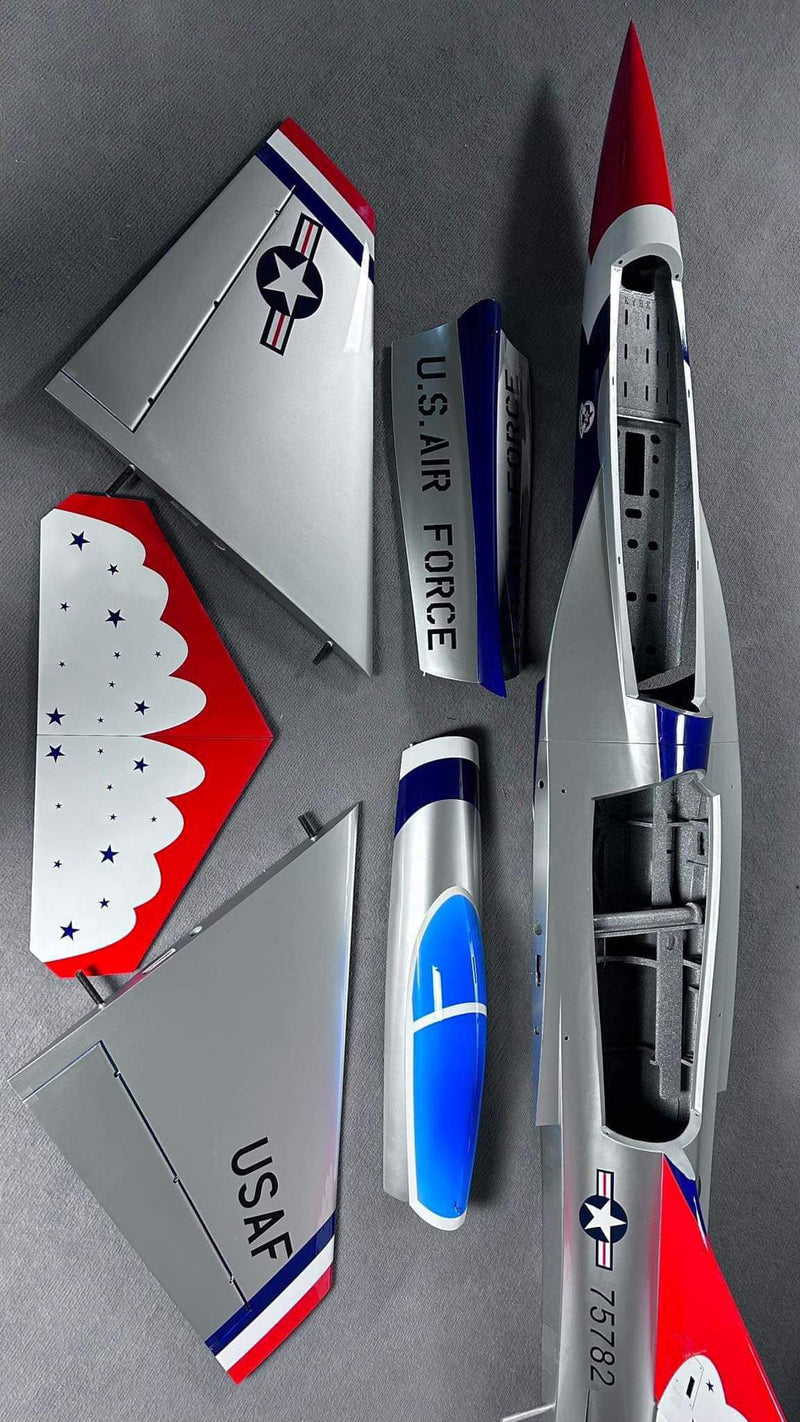

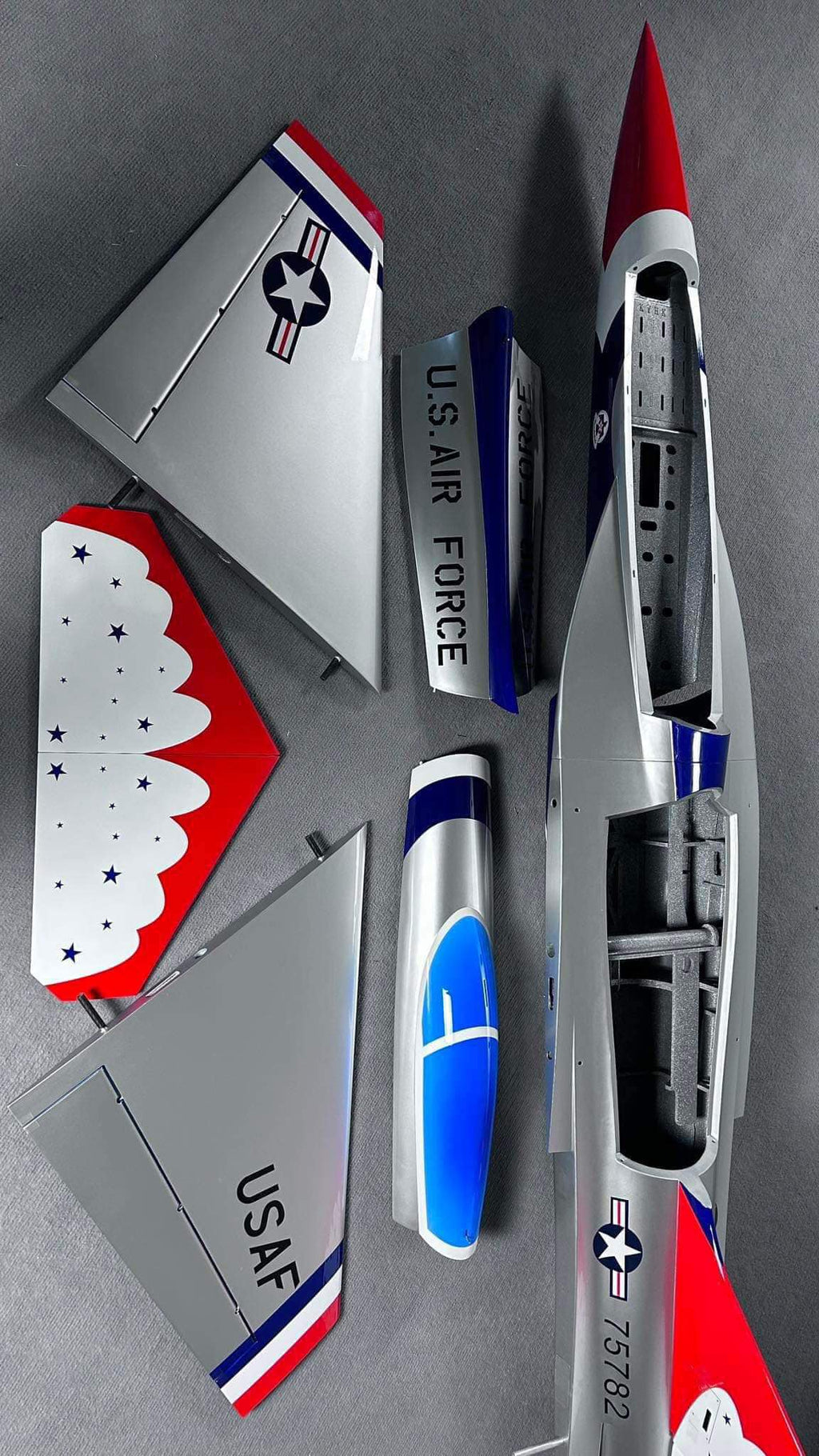

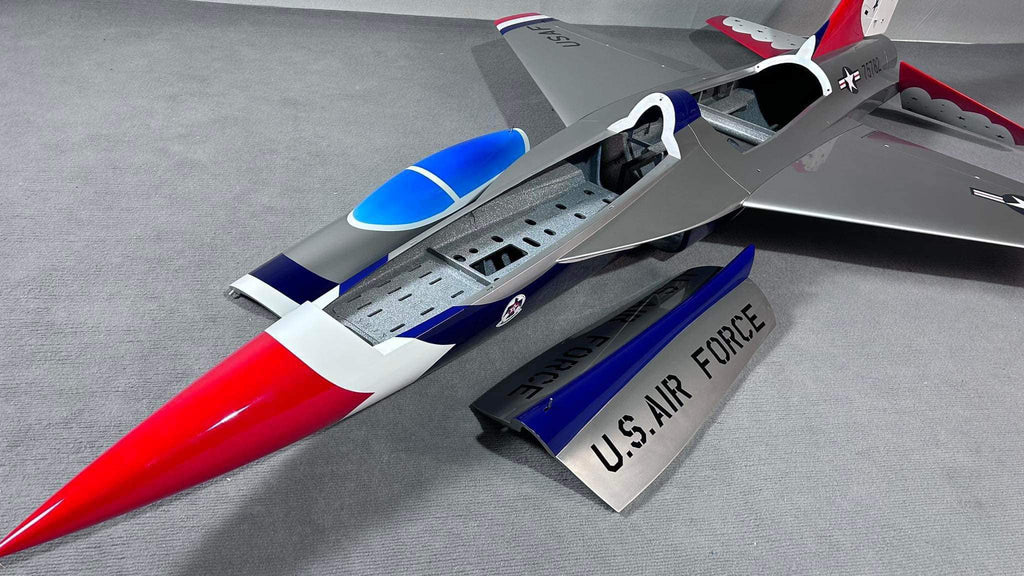

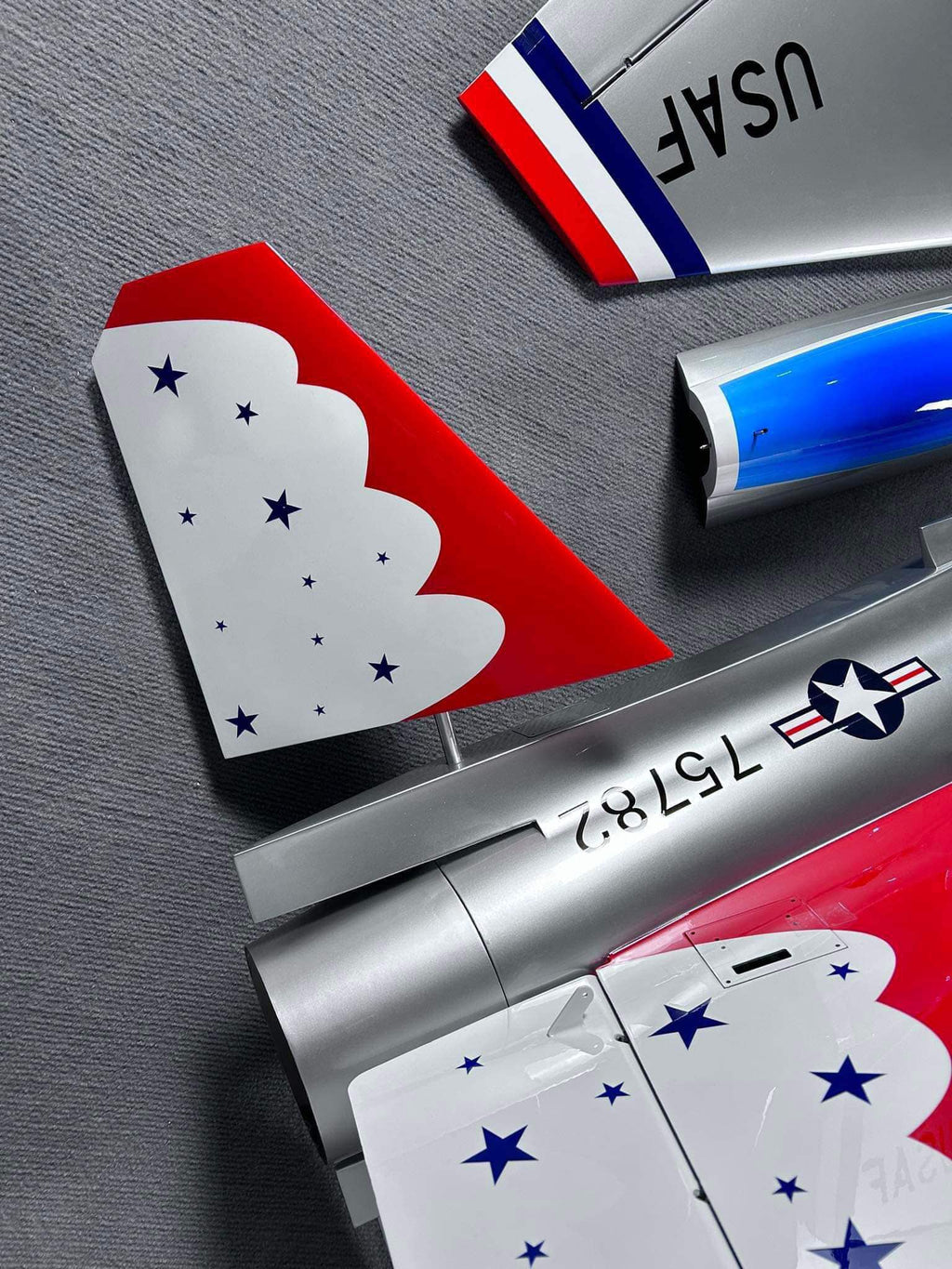

It has an all-composite lightweight structure, a length of 2.4M and a wingspan of 1.5M. It has a delta wing design, fast flight speed and strong maneuverability. It is equipped with a standard vector nozzle, which allows the aircraft to complete more stunts.The segmented fuselage design has a simple structure, easy docking, and can be quickly disassembled and assembled. The wings and tail can be disassembled for easy transportation.The delta wing design has excellent flexibility and maneuverability. It has a custom-made composite main fuel tank with a transparent and observable oil level, a capacity of 3L, a CNC-finished oil filler port, and a threaded design that is removable for cleaning.The front and rear wheel well doors are designed to completely cover the holes to reduce flight resistance.The empty weight is 5.5 kg, and the full weight is within 12 kg without refueling. The whole body is light and strong.

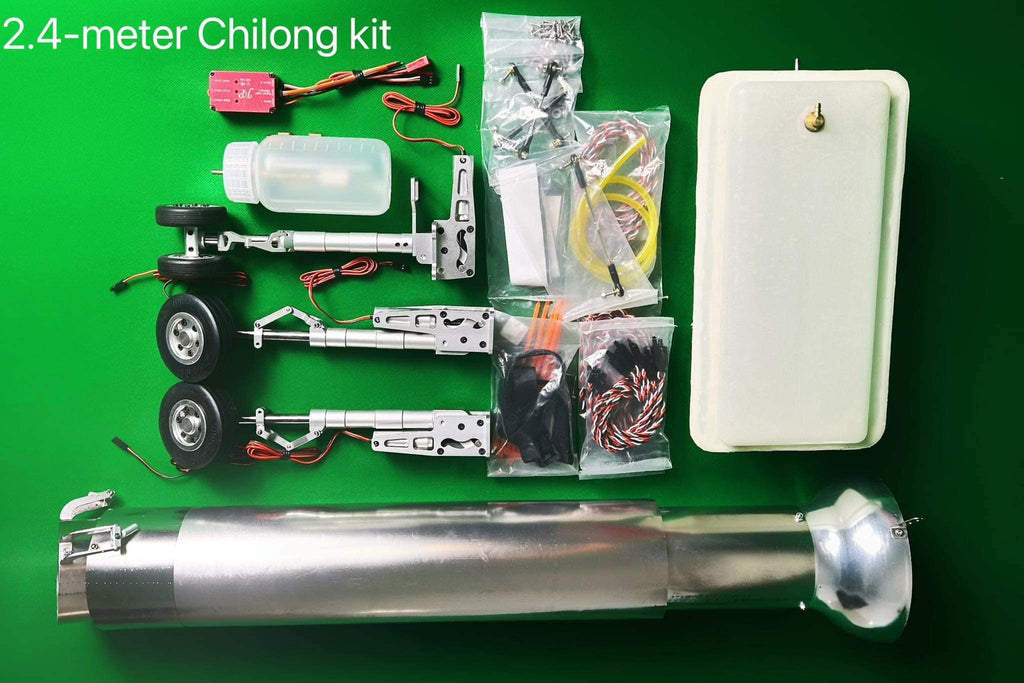

Standard configuration: fuel tank (3 liters), an ultra-light composite body produced by molding with a streamlined design, with a more reasonable structure and easy and simple installation.  CNC precision machined oil nozzle with exquisite thread design.

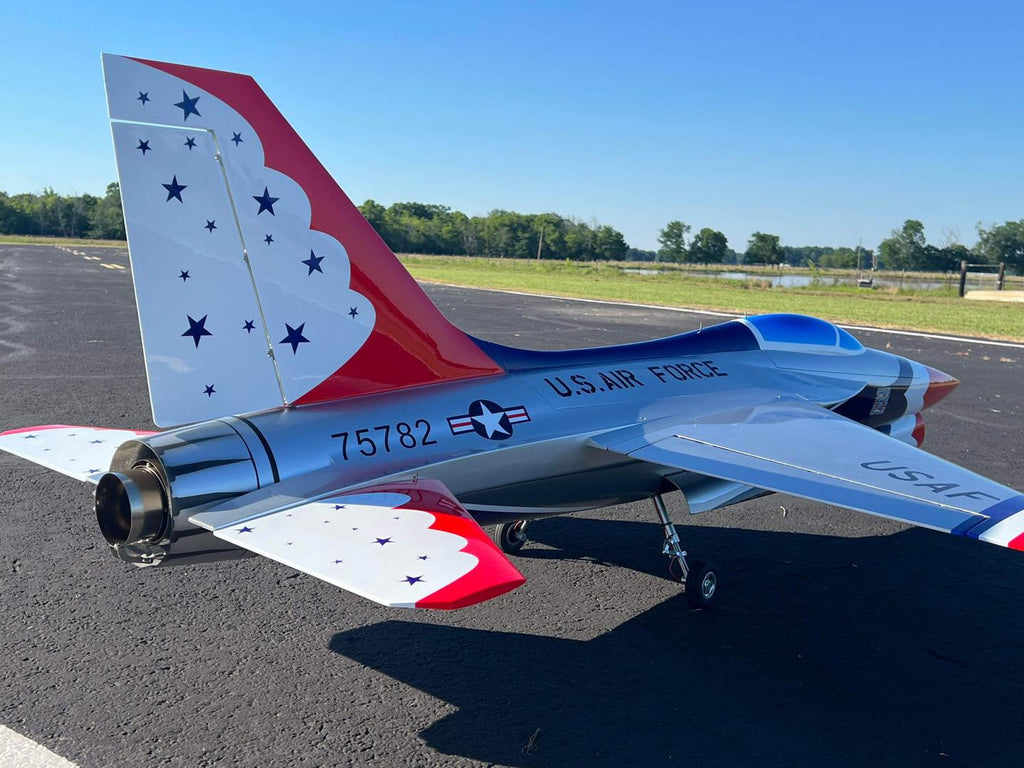

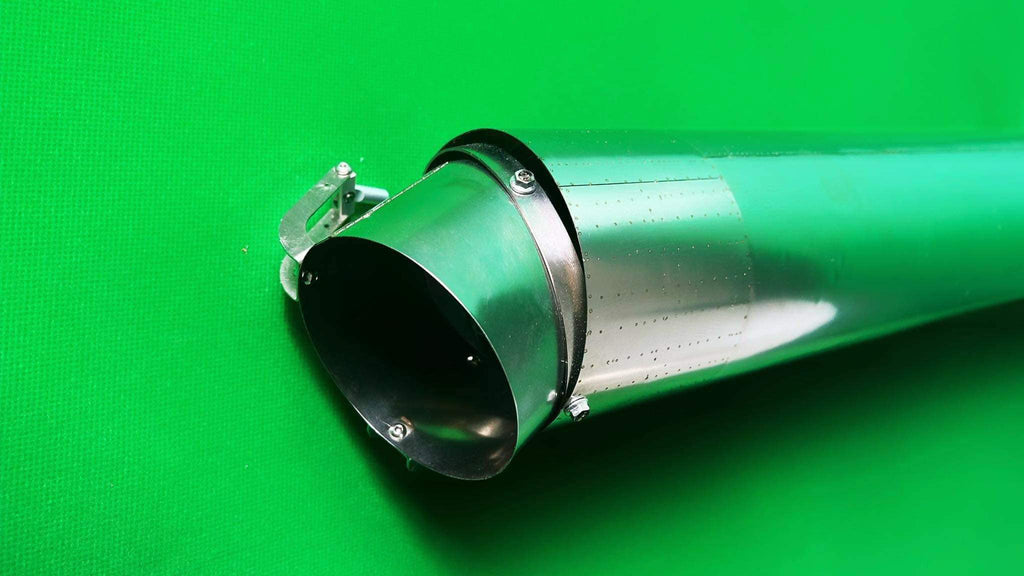

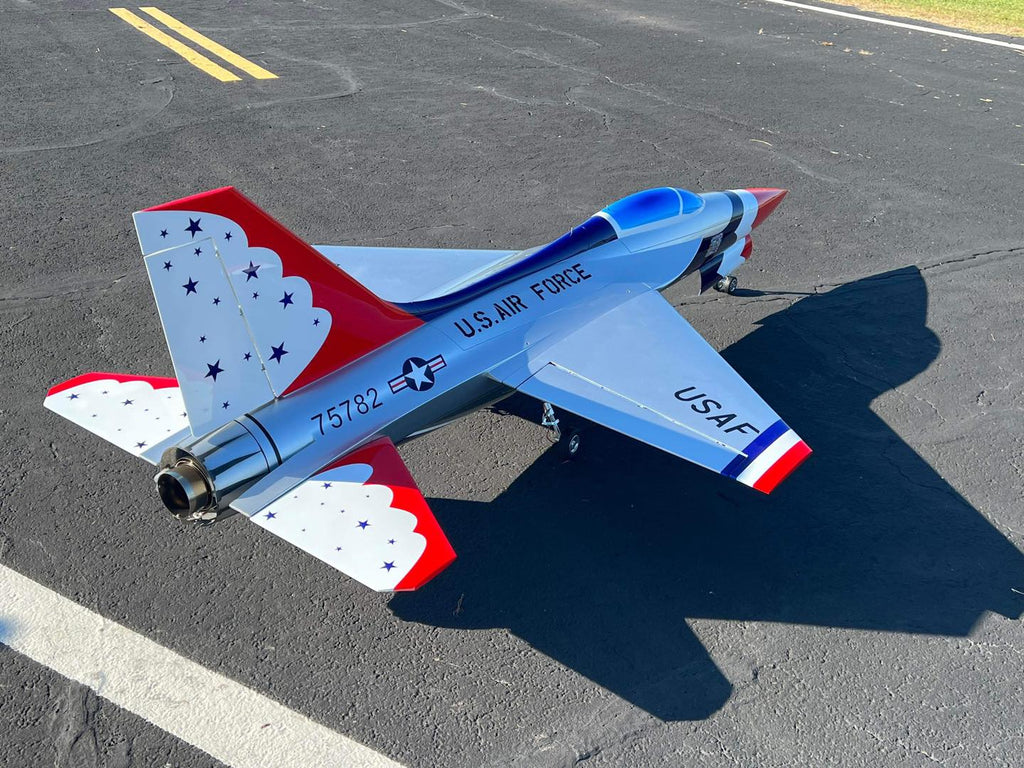

Standard configuration 2; vector nozzle, made of high-temperature resistant materials, high strength, light weight, good backflow, custom-made size, reasonable layout, simple installation and easy operation, suitable for aerobatics.

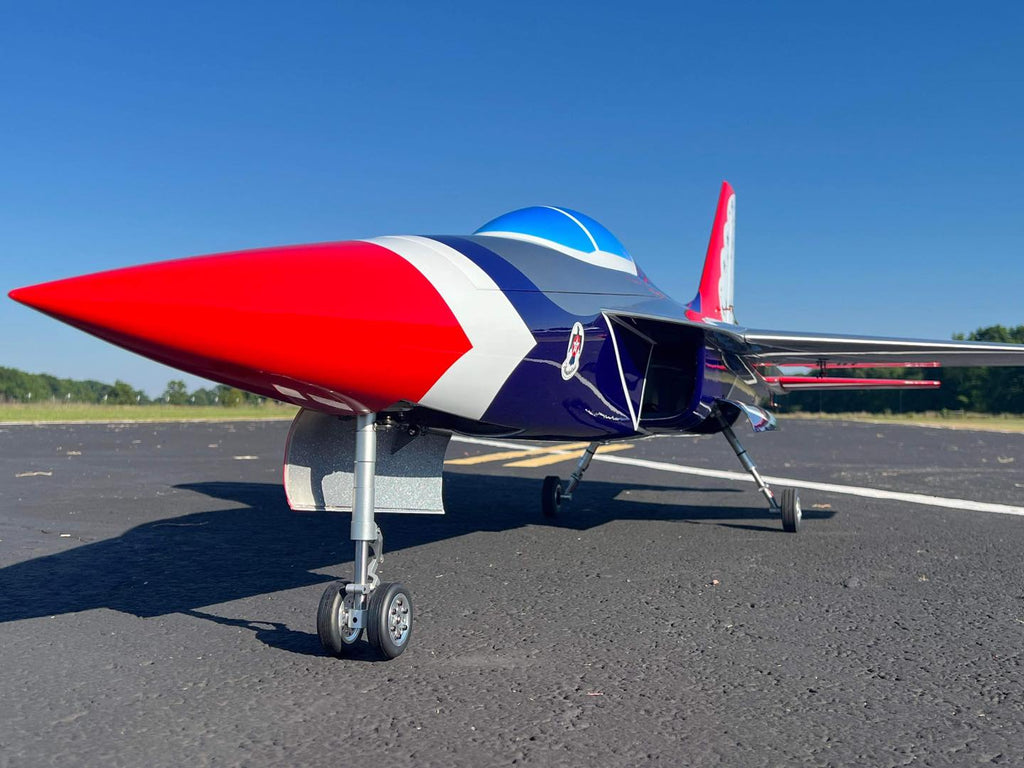

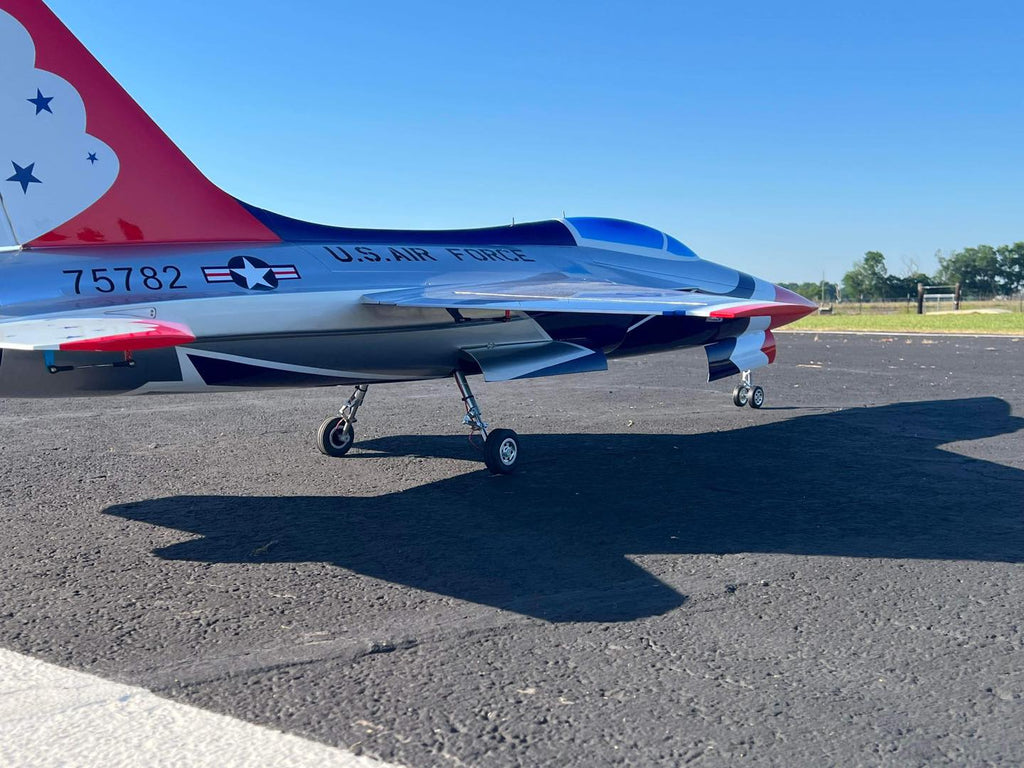

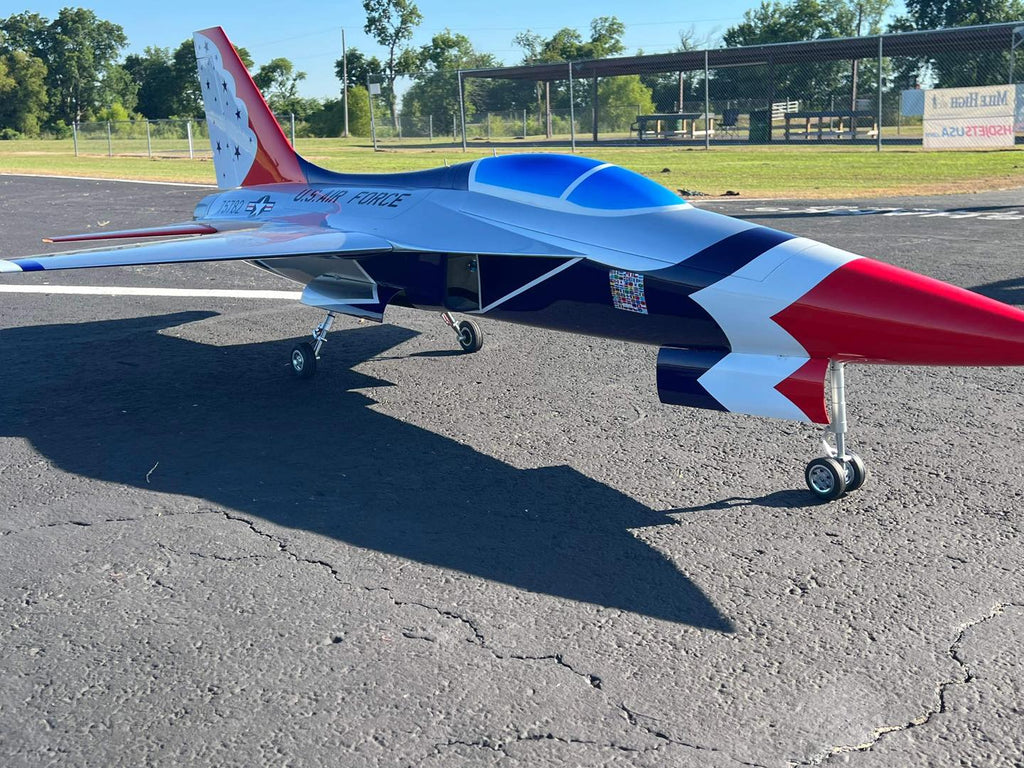

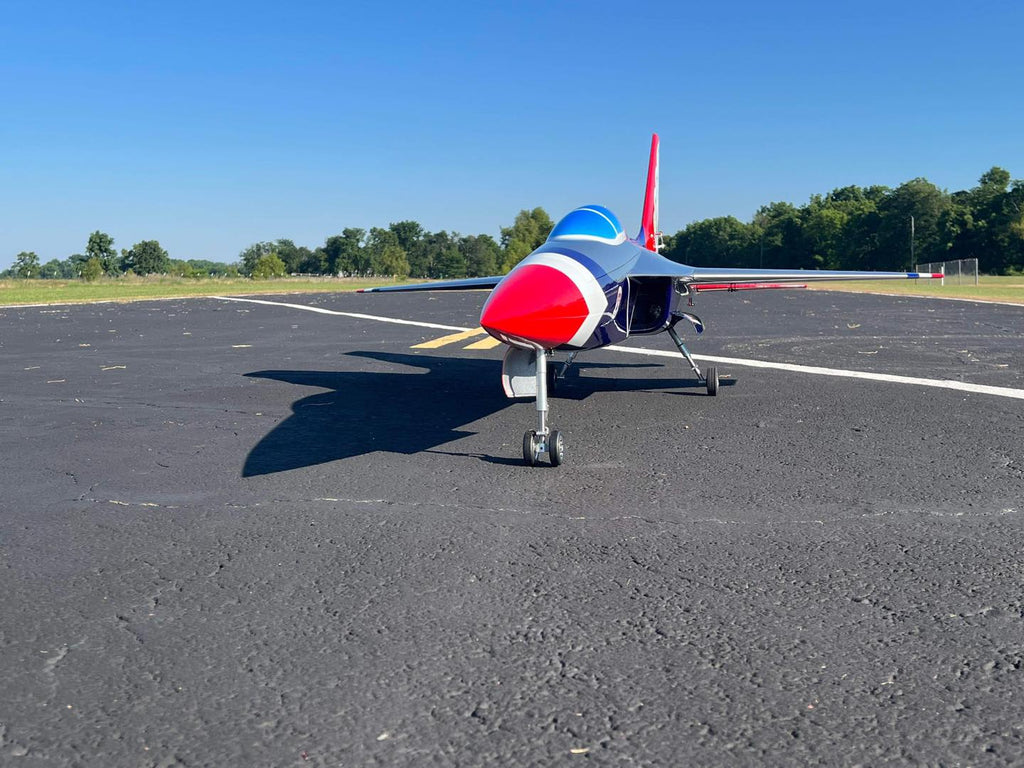

Standard configuration 3; Landing gear, manufactured in conjunction with JP, CNC precision machined alloy brackets and mounting bases, with high structural strength and light weight.Electromagnetic brakes, tires.After continuous testing and optimization, a flexible carbon plate was added to the base to achieve a shock-absorbing and buffering effect.

Product specifications:

Wingspan: 1.5m / 59 inches

Length: 2.4m / 94.48 inches

Weight: The weight of the pure empty machine is about 5 kilograms, and the weight of the whole equipment including the engine is within 12 kilograms.

Fuel tank capacity: 3L

Turbine engine weight: 14-18kg

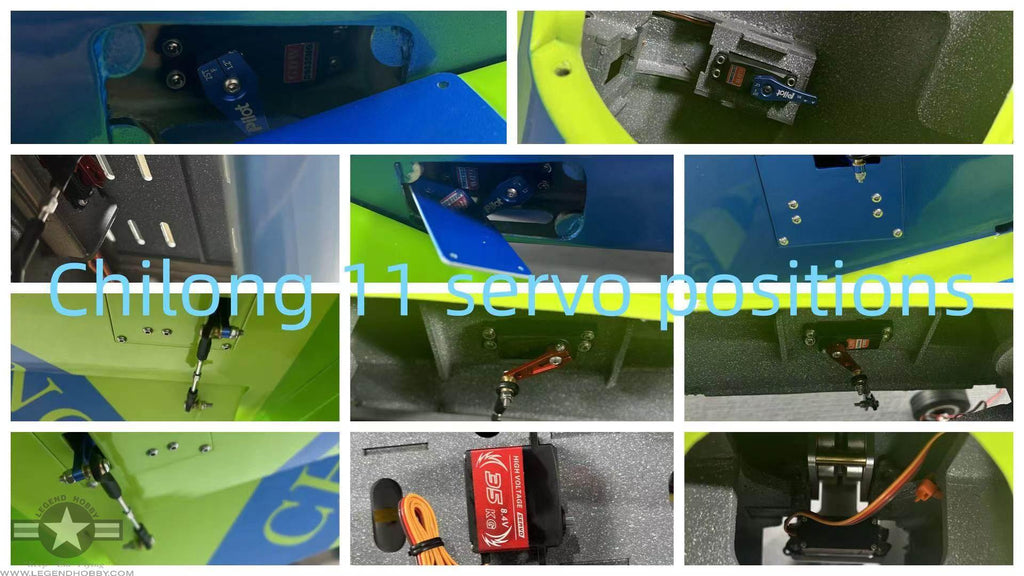

Servo: total x11 (standard size x7 + medium size x4)

x7 standard size high magnesium (minimum 25kg)

x1/flap/edge

x2 vector

x1 rudder

x1/lift/side

x4 medium size (size: 35x15x30mm, minimum 4kg)

x1 steering

X3 hatch cover

ONCE ORDER IS PLACED WE WILL CONTACT YOU FOR COLOR SCHEME CHOICE!

• All the usual accessories are also required, such as transmitters, receivers, servos, batteries, power boxes, turbines, and other possible devices and assembly adhesives etc.

  VIDEOS COMING SOON
