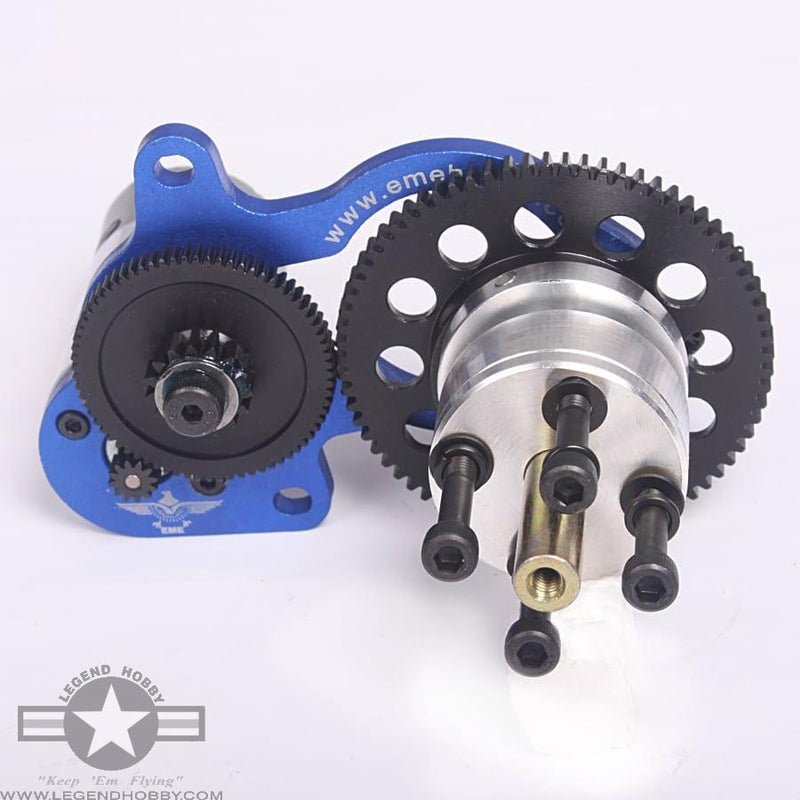

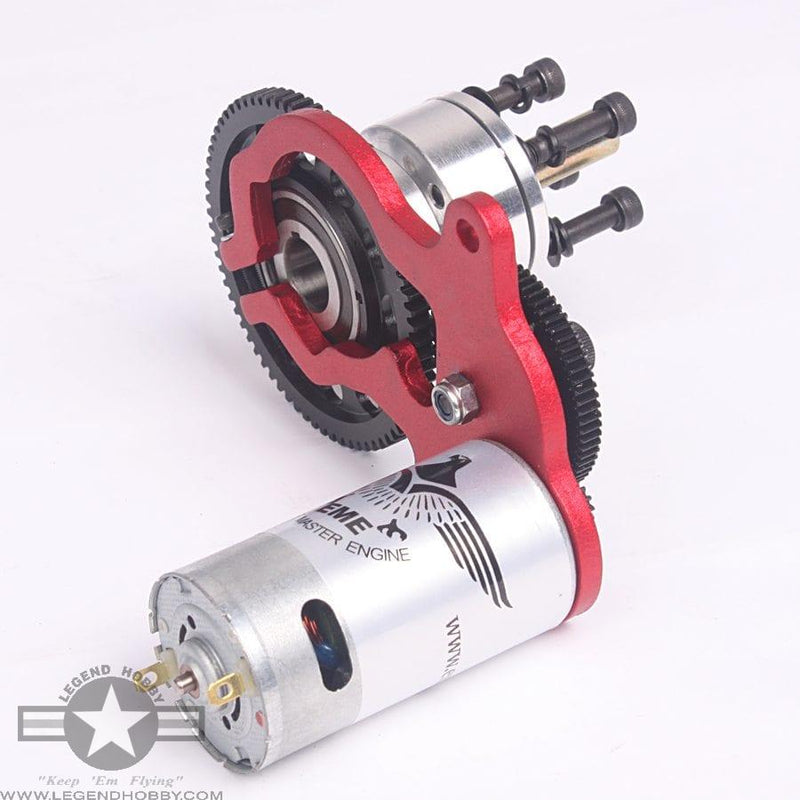

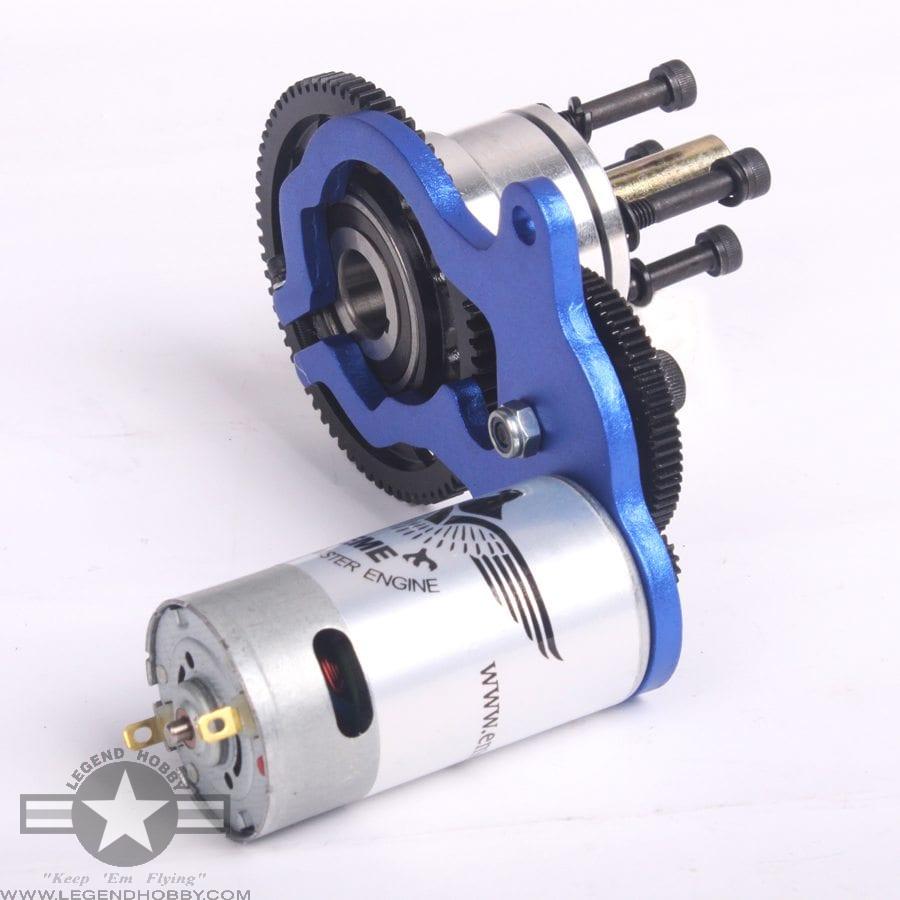

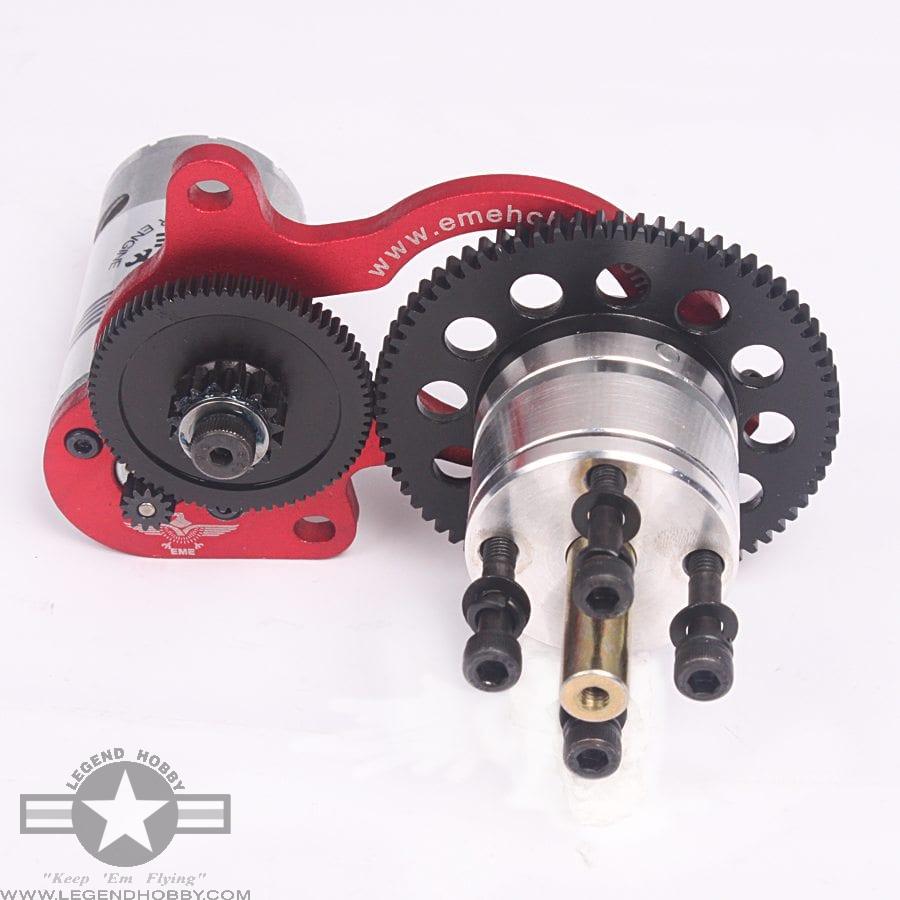

EME 50cc-60cc AUTO START ADD ON KIT

EME 50cc-60cc Electric Auto Start Module Add On Kit For use with :

DLE55, EME55, DLA56, SE 55, EME60

Or any motor with the same prop hub, mounting pattern, and crank as above.

DLE55RA users may need to drill an additional mounting hole

And others with the same crank, mounting pattern, and prop hub

Does not fit DA 50, DA 60, DLE 60 Twin, Twin anything, DLE 61,O.S., JC, Zenoah, DLA, 15CC, 20cc, 30cc, 34cc, 40cc, 42cc, 111cc, 120cc, 170cc, etc...

Specifications:

Total Weight - 19oz. (540g)

550 Brushed Motor

- Input 3-15V

- We recommend the optional controller for ease of use.

Use on DLE55, EME55, DLA56, SE55, EME60

Things to be aware of prior to purchasing:

Partial assembly is required. It is recommended that you are comfortable working on your engines. You will need to remove the prop hub and shaft. You will also need to install a gear with a one way bearing. Basic mechanical understanding and basic mechanical skill is recommended for best results. No instructions are included. Grease your gears after final assembly. DO NOT operate starter unit or engine equipped with starter unit without a prop.

90 Day Warranty on entire unit - Note Warranty is void if you do not grease your gears.

Add electric start to your favorite aircraft and really enjoy taxing and flying so much more. No more busted knuckles, bruised hands or broken fingers! No more chicken sticks, padded leather starter gloves, sore shoulders, or heavy starters. Simply assign starter to a switch and start your engine with the push of a button or with a flip of a switch. Drive gear incorporates a one way bearing so power is not transferred back to the engine/motor auto starter.

Auto Starter for 50-60CC gas engines

Sent in random colors No Instructions Included

$119.00

To make installation and operation of the AUTO START UNIT simple, we recommend using the EME AUTO START CONTROLLER.

100 Amp Controller / Electric Switch for Auto Starter

Includes XT90 Plugs

This is the new controller (more stable on 3-cell). Now with a case and LED power indicator. 46g, Pulse Width 1.2-1.4MS, 7.2 - 15V / 100Amp Max

We suggest 2 or 3-cell Lipo

No Instructions Included
