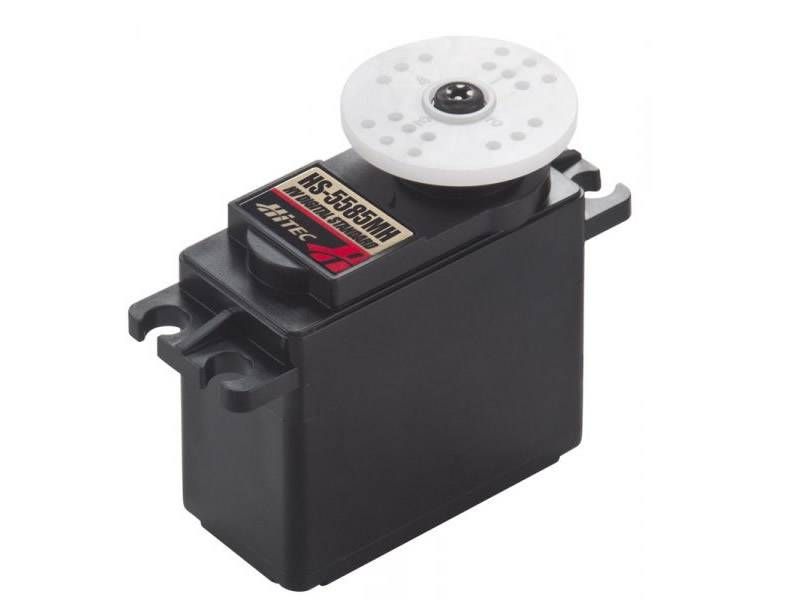

Hitec HS-5585MH Digital HV High Torque Metal Gear Servo
Product Description
Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation. The HS-5585MH, supplies your high performance airplanes up to 35 percent with outstanding strength and precision. This high torque servo is also great for 1/10th monster trucks to 1/8th scale buggies and truggies!
Features
- Our Most Economically Priced High Torque Digital Coreless Servo
- Quick and Precise Coreless Motor
- Heavy Duty Metal Gears
- 7.4v 2-Cell LiPo Capability
- Standard Programmable Digital Circuit
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
HS-5585MH Servo Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
6.0V ~ 7.4V |
| Speed (Second @ 60°) |
0.17 ~ 0.14 |
| Maximum Torque Range oz. / in. |
194 ~ 236 |
| Maximum Torque Range kg. / cm. |
14 ~ 17 |
| Current Draw at Idle |
4 mA |
| No Load Operating Current Draw |
300 mA |
| Stall Current Draw |
2,700 mA |
| Dead Band Width |
2 µs |
| Physical Specifications |
| Dimensions (Inches) |
1.57 x 0.78 x 1.49 |
| Dimensions (Metric) |
39.8 x 19.8 x 37.8 |
| Weight (Ounces) |
2.10 |
| Weight (Gram) |
60.0 |
| Circuit Type |
G1 Programable Digital |
| Motor Type |
Coreless Metal Brush |
| Gear Material |
Metal |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
25 / 40 |
| Radio Control Applications |
| Parkflyer |
N / A |
| Sport Plane |
30% |
| Sailplane |
2 meter and up |
| 3D Performance |
30% |
| Scale |
30% |
| Electric Helicopter |
700mm |
| Gas Helicopter |
90+ Class |
| On Road |
1/8th |
| Monster Truck |
1/8th |
| Buggies |
1/8th |
| Truggies |
1/8th |
| Short Course / Truck |
1/8th |
| Crawlers |
1/8th |
| Sail Boat |
= >1 meter & Scale |
| Power Boat |
N / A
|
