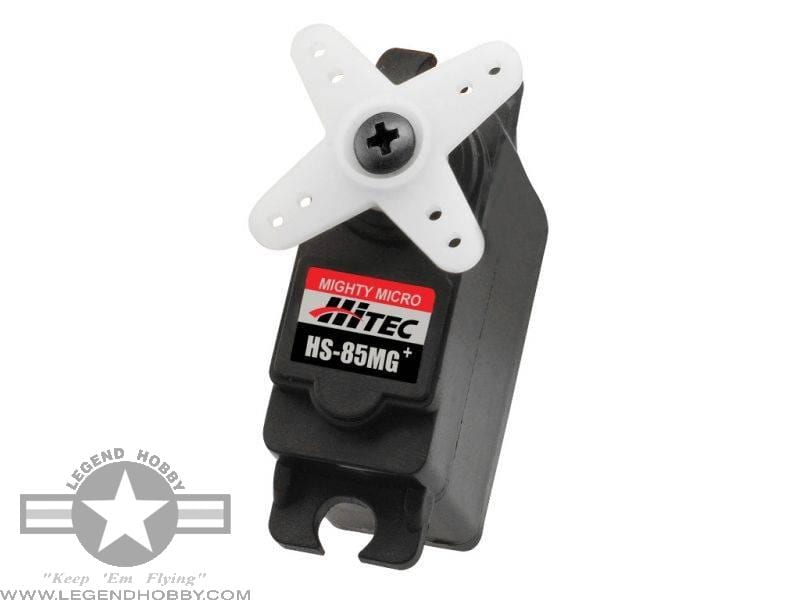

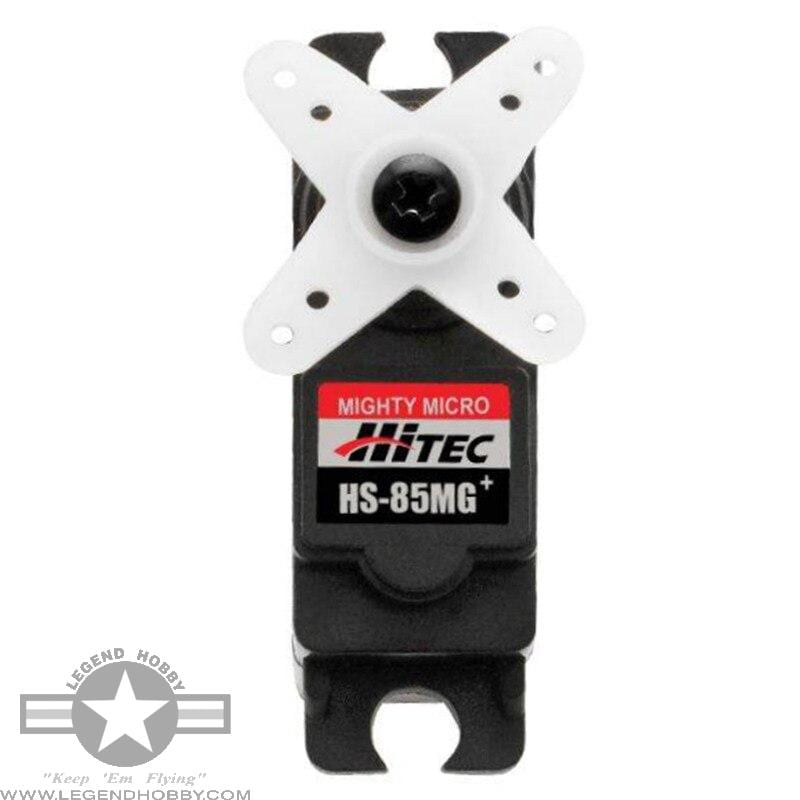

Hitec HS-85MG Premium Metal Gear Micro Servo

Name: Hitec HS-85MG Premium Metal Gear Micro Servo
Brand: Hitec
SKU: 32085SHS85MG
Price: 37.95 USD
Availability: InStock

Save 5%

Price:

$37.95 $39.99

Quantity:

Share this product

HITEC HS-85MG Premium Metal Gear Micro Servo

High Torque and Precision Centering
Rugged Metal Gears
Ball Bearing-Supported Output Shaft
Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.16 ~ 0.14
Maximum Torque Range oz. / in.	42 ~ 49
Maximum Torque Range kg. / cm.	3.0 ~ 3.5
Current Draw at Idle	8 mA
No Load Operating Current Draw	240 mA
Stall Current Draw	1,200 mA
Dead Band Width	8 µs

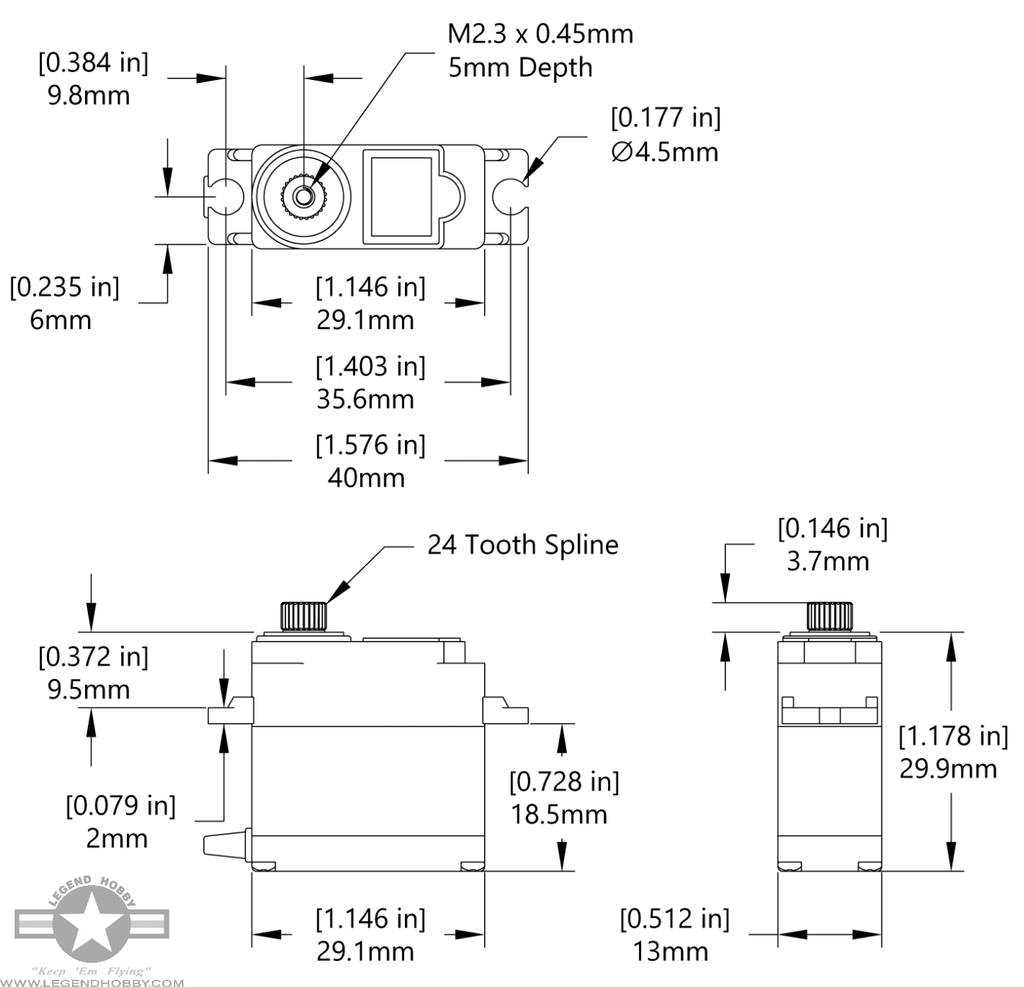

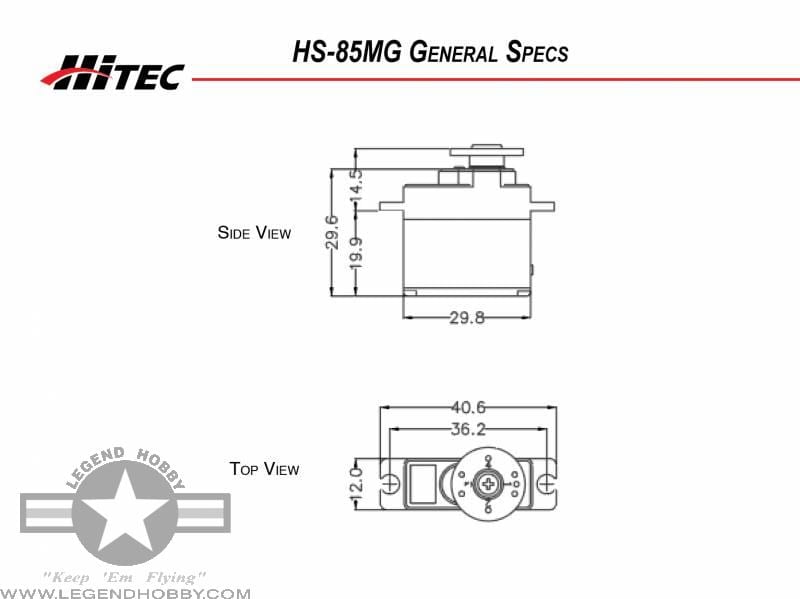

Physical Specifications
Dimensions (Inches)	1.14 x 0.51 x 1.18
Dimensions (Metric)	29.0 x 13.0 x 30.0
Weight (Ounces)	0.77
Weight (Gram)	21.9
Circuit Type	HT7003 Analog SMT
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	Top Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	28 / 20

Reach out to us via email to find out what parts are available. Send us an email at info@legendhobby.com to inquire about replacement or spare parts.
