RCGF 26cc SE Stinger Engine Description
Glow size engine casing with gasoline economy & ease!
Glow power isn't the only option anymore. The NEW STINGER 26CC SE -Stinger engine not only fills the displacement gap, but includes a beam mount to make the glow-to gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment. NEW STINGER 26cc SE is starting ease and top performance make the 26CC SE an attractive alternative to glow and a solid buy for value and performance.

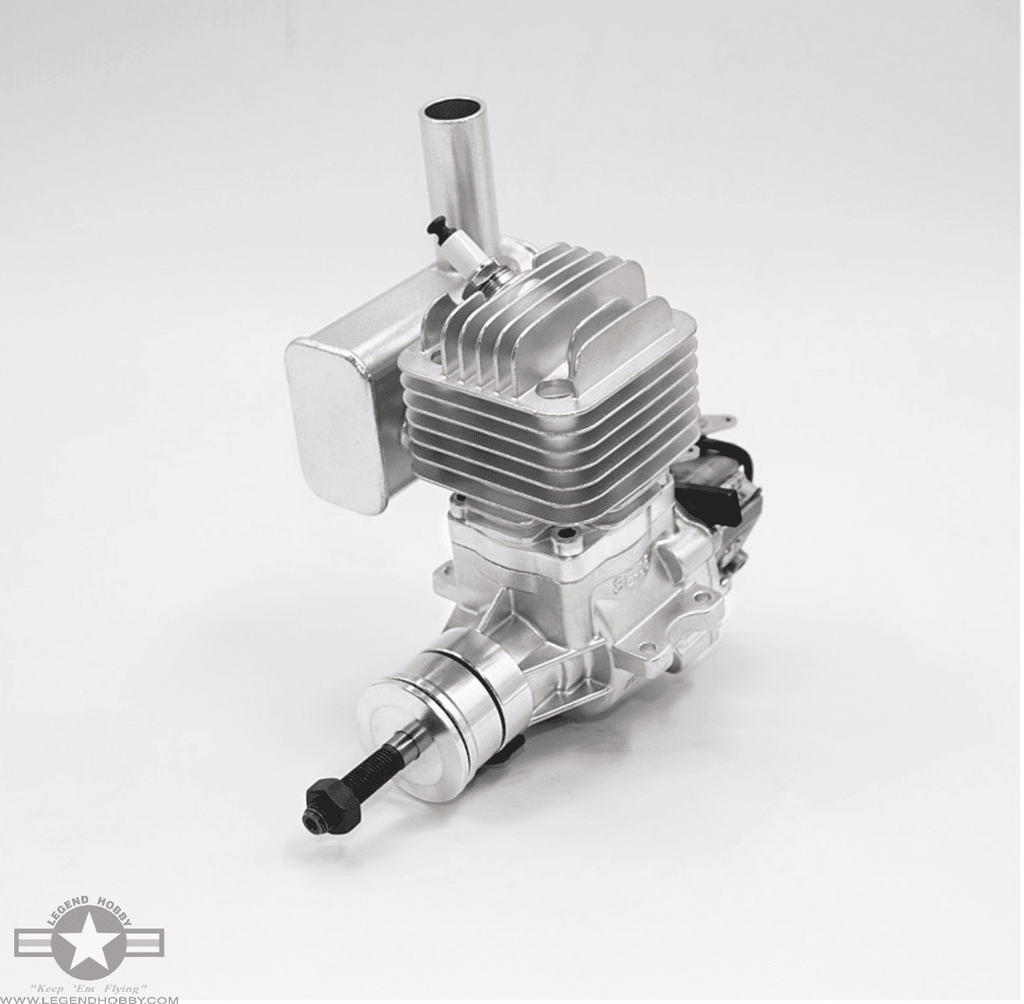

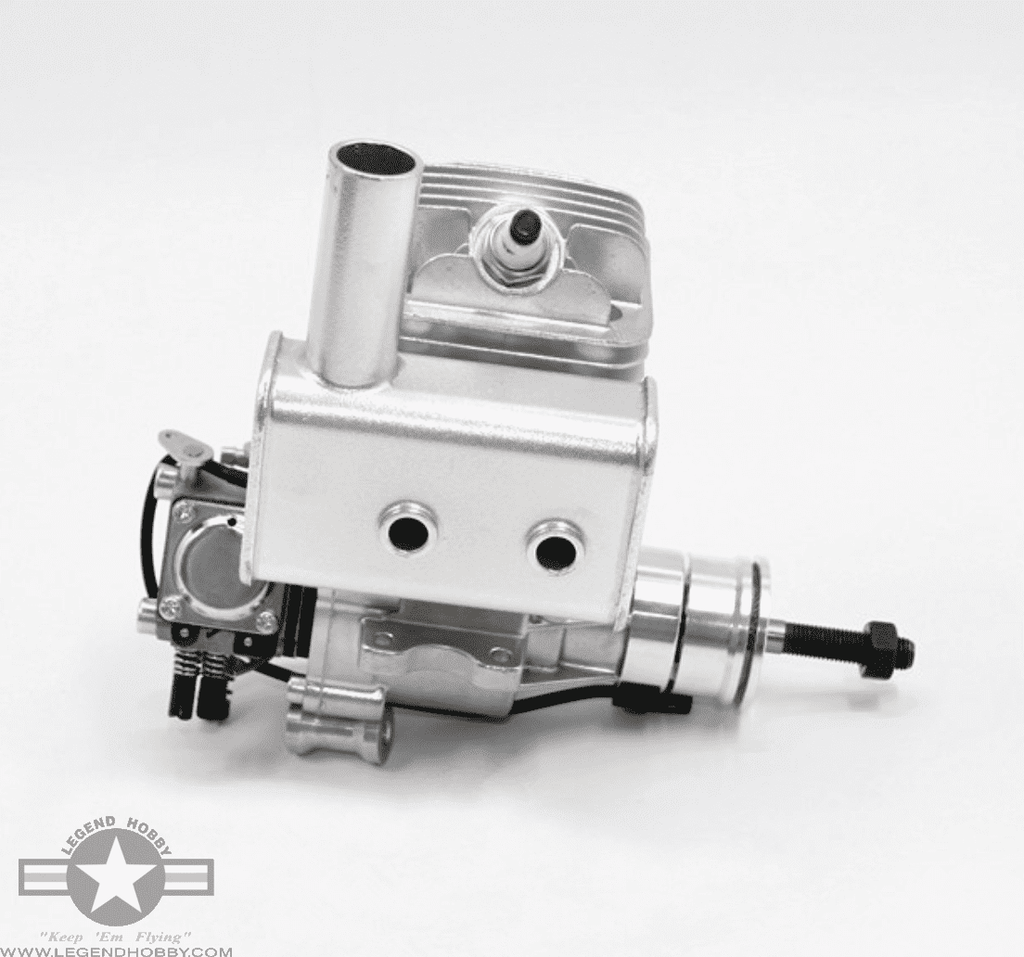

NEW Stinger 26cc SE
Parameter:
Type : 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) : 26cc (1.59 cu in)
Bore x Stroke (mm): 1.3 in (34mm)*0.67 in (28mm)
Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 6-14V
SPARK PLUG: CM6 (M14 X1,L-36mm)
Maximum Output : 3.1 hp @ 2.28kw
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1800-9800rpm
Gasoline-Version:Pre-mixedFuel,25-40(Gasoline):1 (recommended : 30:1) (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : JXF 18*8 7150(Standard Two leafs prop)
recommended props :16X8,16X10,17X8,18X8,18X10
Cooling System : Air Cooled
RCGF Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight:
Engine: 2.02 lb (920 g)
Muffler: 2.5 oz (70 g)
Ignition Module: 4.1 oz (115 g)
Total: Weight: 2.43 lb (1105 g)
Technical Data:
Ignition Battery: 6-8.4NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: CM6 14mm
Idle Speed: 1800 rpm/min
Static Thrust:
17.68 lb (8 kg) @ 328 ft (100 m) altitude
15.87 lb (7.2 kg) @ 5,900 ft (1800 m) altitude
Service/Parts:
Serviced right here in the USA.
Warranty and Service Center with readily available spare parts here in the USA !
