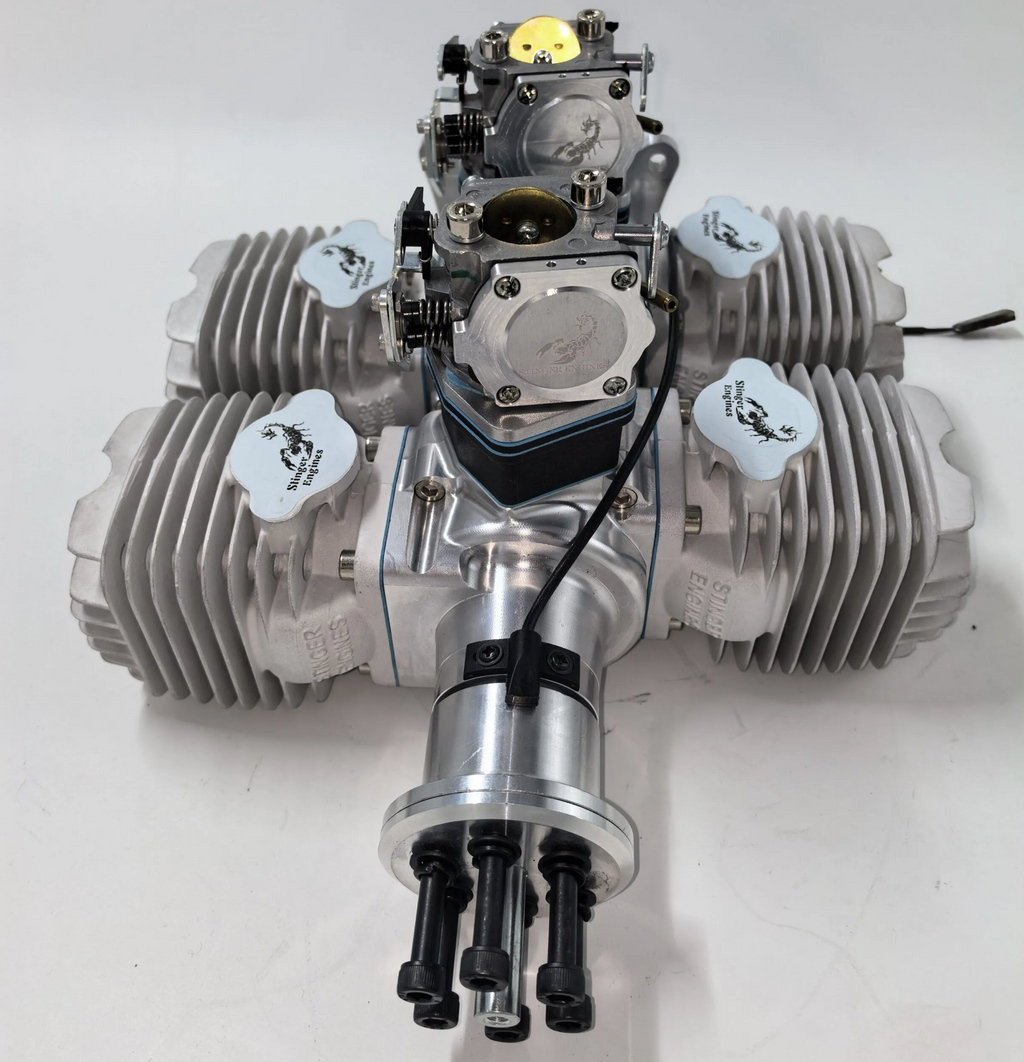

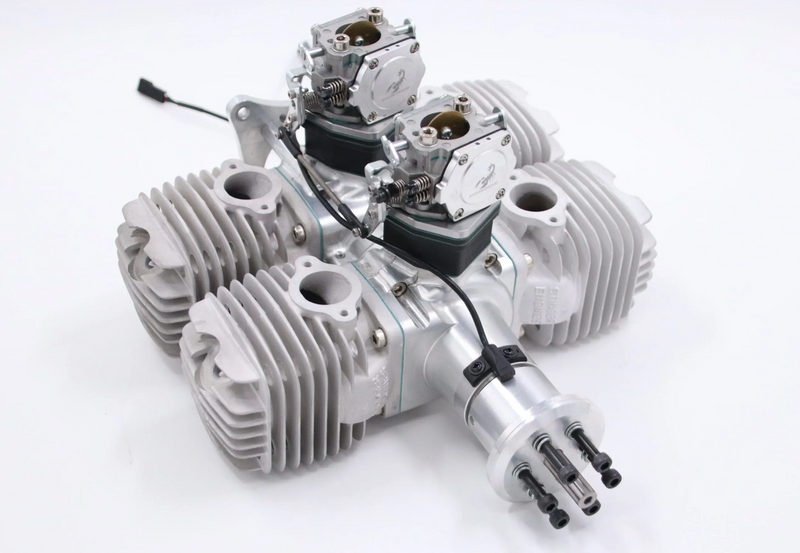

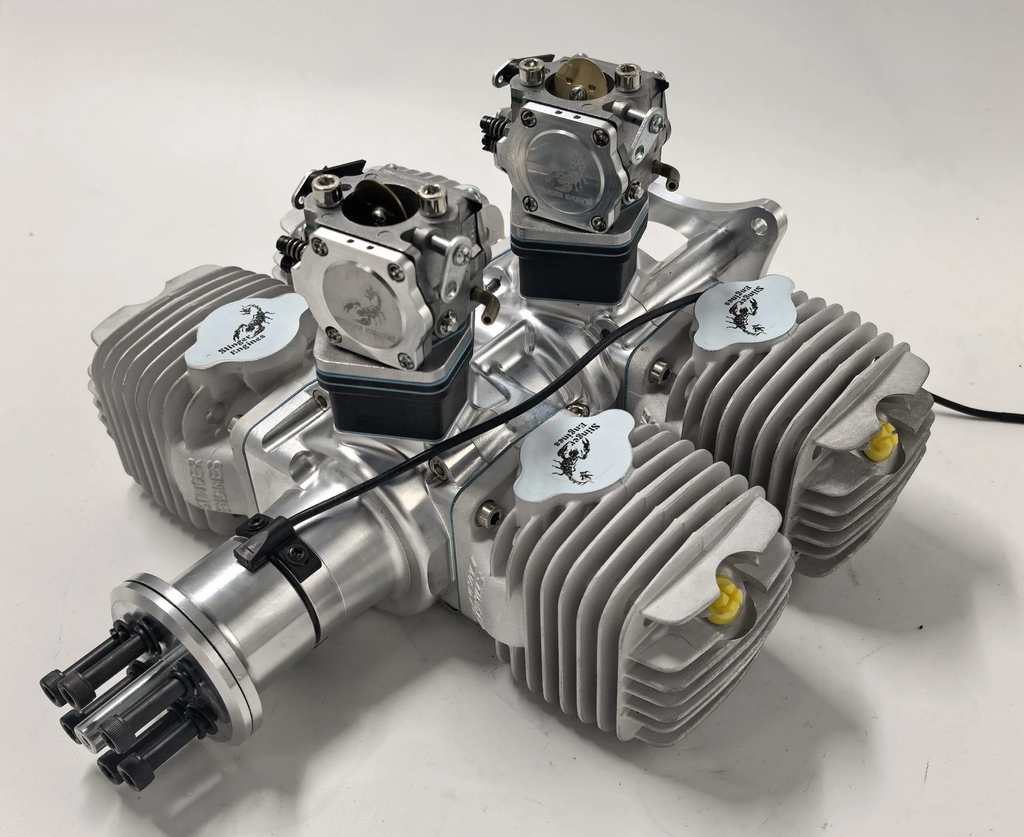

STINGER PRO 250CC FOUR CYLINDER ENGINE
PRE-ORDER , DELIVERY in 7-12 Days!
- New ceramic plating cylinders will bring you indredible flying experience !
- Angled plugs, CM6 Spark Plugs Included.
- This gasoline engine is designed for your large scale aircraft.
- We combine our excellent quality and more power for a reasonable price.
New ceramic plating cylinders will bring you indredible flying experience !
Parameter
| Type |
2 cycle piston valve type gasoline engine for airplane |
| Displacement (cc) |
250cc |
| Bore (mm) |
47 mm |
| Recommended props |
32×10 32×12 34×10 |
| Maximum Output |
25 Horsepower |
| Power supply |
7.4V-14V |
- Carburetor : Walbro
- Ignition : Stinger DC-CDI (Computer Controlled auto advance, electronic ignition system)
- SPARK PLUG: IRIDIUM CM6 size
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed rang : 1000-8000rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
- Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
- Break in Propeller : 34X10 (Standard Two leafs prop)
- Break in Gas/Oil Mix Ratio :40:1 for real oil, or 40:1 for synthetic oil
- Cooling System : Air Cooled
- RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight:
- Engine: 4880g
- Muffler: 470g
- Ignition Module: 190g
- Total: Weight: 5540 g
Technical Data:
- Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack
- Gasoline/Oil Mix: 32:1 for real oil, or 40:1 for synthetic oil
- Replacement Spark Plug: NGK CM6 or equivalent
- Idle Speed: 1100 rpm/min
Serviced right here in the USA.
Warranty and Service Center with readily available spare parts here in the USA !
